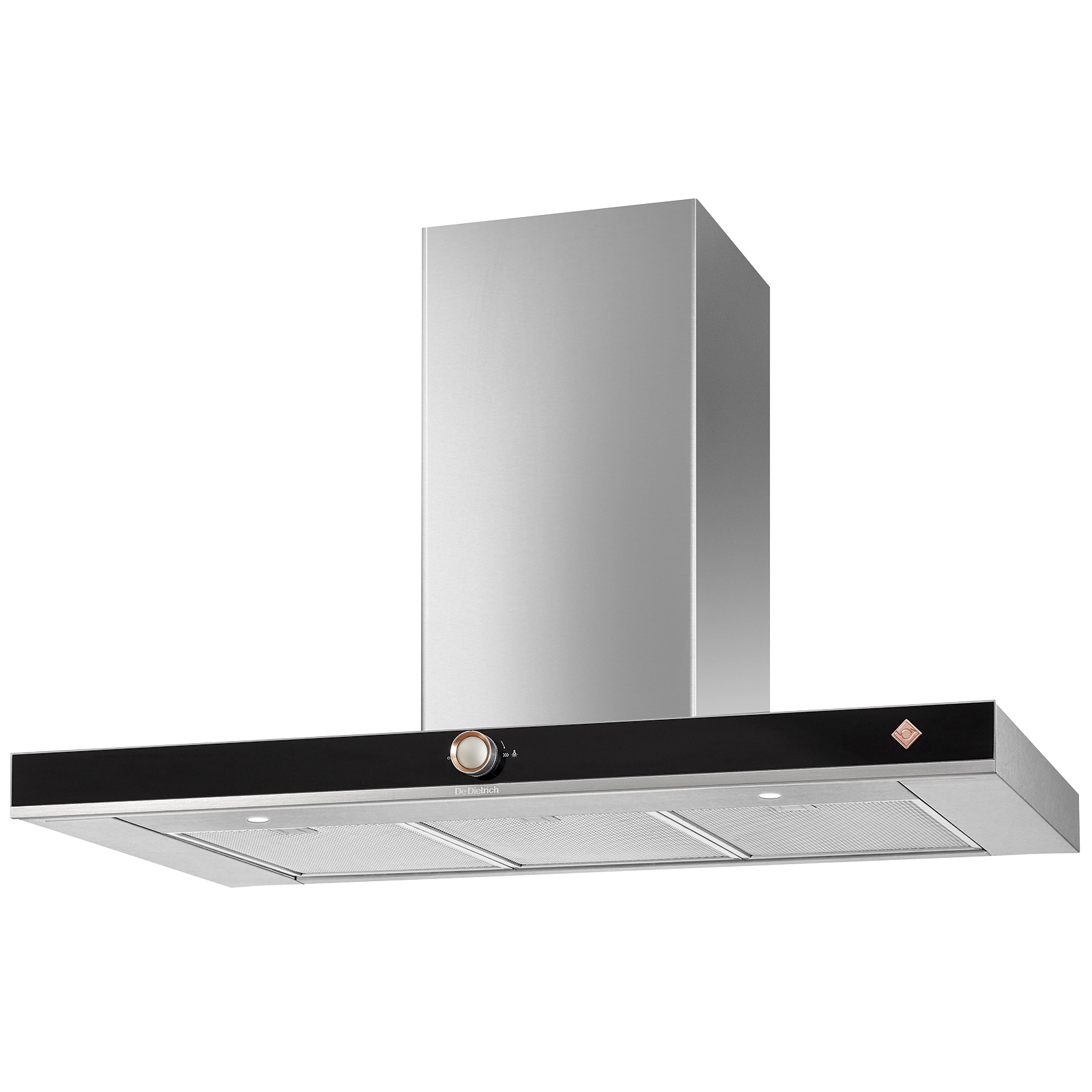

Platinum

Wall decorative hood

DHB7952X
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 500.22ms
  • REVIEWS, PRODUCT
  • bvseo-msg: Error - Operation timed out after 500 milliseconds with 0 out of -1 bytes received; HTTP status code of 0 was returned;
Fascination
Collection

A prized piece in the new 2017 collection, this decorative wall-mounted hood combines style, craftsmanship and innovation in the most perfect of partnerships. With an A+ rating in recognition of its highly efficient performance, the unit has also been designed to make the installation process as simple for you as possible, thanks to its Plug & Play system.

colors
Absolute Black
Pure White
Absolute Black
zoom
A Top-Quality Manufacturing
This hood ombine design aspects, technology and functionality to the same exacting standards. These standards apply throughout the entire life of the unit; with a cleverly-designed mounting and adjustment system, an inner housing for ease of maintenance and cleaning, integrated silencers for the quietest operation possible.
A+ Rated Hood
This hood offers the best possible performance both in terms of energy savings and efficiency: the result of a design that has been successfully brought to fruition which combines the efficiency of three stainless steel fi lters with a highly eff ective motor and LED lighting: two key elements in signifi cantly limiting noise levels and energy consumption.
Boost Function
When selected, this feature immediately sets the hood to work at maximum extraction speed for even greater efficiency when large amounts of vapour or cooking aromas are present.
Main Specifications
Type of hoods:
<FR value not found>
Output air extraction (m3/h):
394
Width (cm):
90

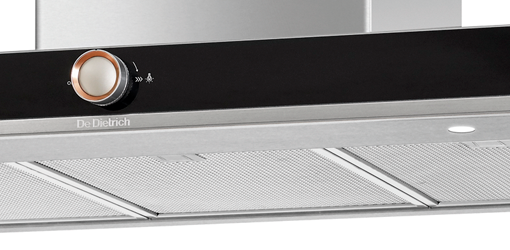

Control panel
Type of control:
Electronic
Boost position:
Yes
Lighting
Number of lights:
2
Light position:
Front
Type of bulb:
<FR value not found>
Total brightness in Lux:
393
Lighting power (W):
2.0
Performances
Number of speed positions:
3
Acoustic power level (recycling) (dBA):
53
Max recycling air extraction (m3/h):
386
Boost position output recirculating (m3/h):
565
Boost position air extraction (m3/h):
702
Minimum evacuation sound level (dBA):
53
Max evacuation sound level (dBA):
60
Filtering
Number of filters:
3
No-return airflow clap:
Yes
Optional accessories:
Charcoal filter
Dimensions
Height of product without chimmey (mm):
60
Dimensions of product HxWxD (mm):
60X900X500
Height of chimmey min/max (mm):
650/1002
Dimensions of the packed product HxWxD (mm):
600X980X530
Gross weight (kg):
17.4
Net weight (kg):
14.5
Connections
Voltage (V):
220-240
Frequency (Hz):
50-60
Current (A):
10
Connection rating (W):
269.0

Complementary product(s)
