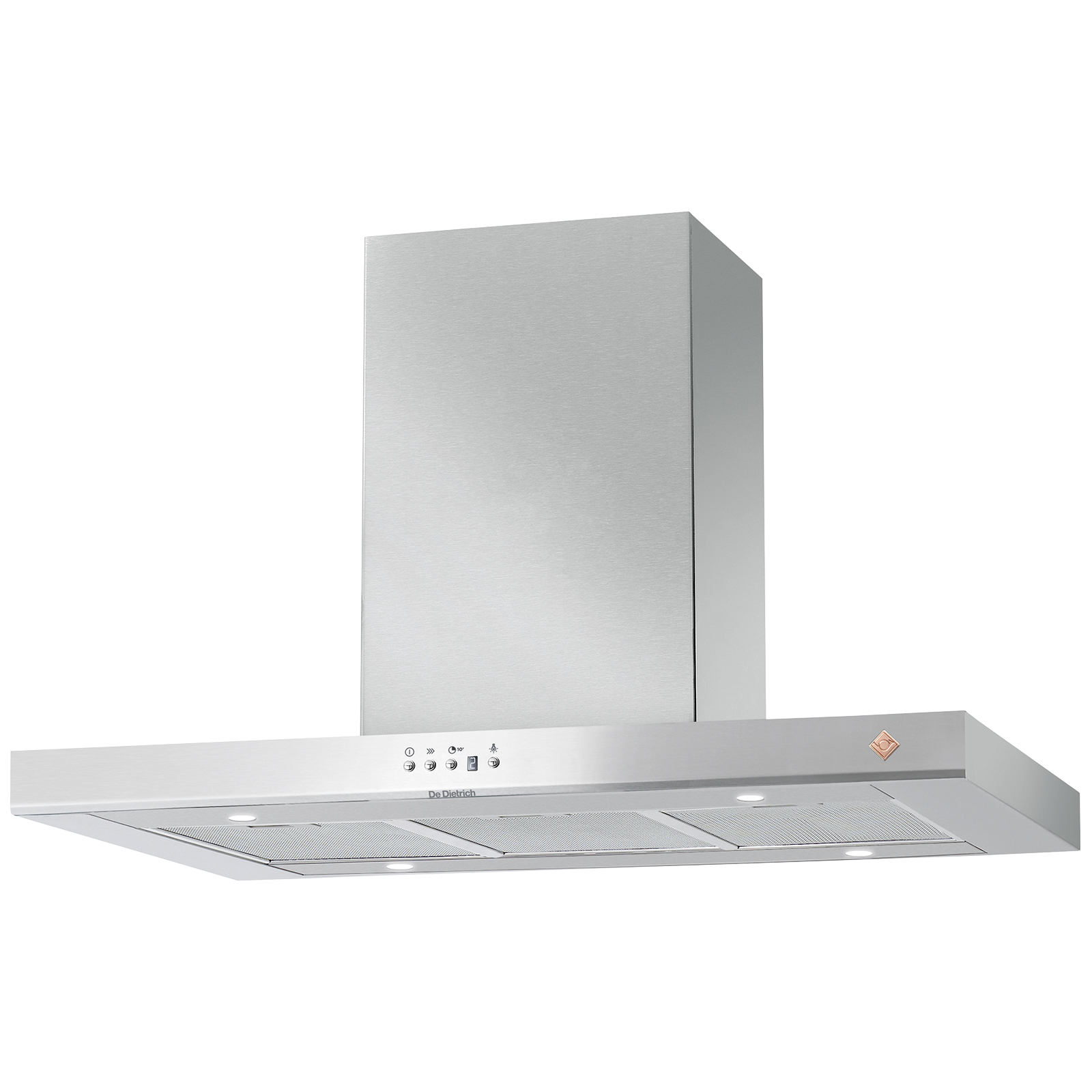

Wall decorative hood DHB7939X - De Dietrich

Fascination
Collection

As the heart of the home, the kitchen is less removed than ever before, with walls being taken down to create open living spaces with dining rooms, living rooms and lounges. This decorative hood has been designed in keeping with current trends, and installs above a large island hob for effective ambient air renewal.

colors

Absolute Black

zoom

compare

Add this product to my favourites

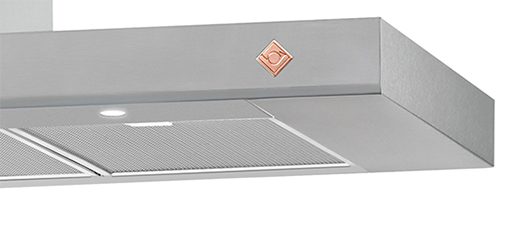

LED Lighting - The Greatest Respect for the Environment

This lighting method stands out as consuming almost 85% less electricity and lasting 20 times as long as an incandescent bulb. The system both efficiently illuminates all the pans on your hob and provides you with soft mood lighting that is ideal for over dinner.

Delayed Stop Function

This system has been designed to totally eradicate any residual postcooking vapours. The hood continues to function for ten minutes after the last speed is selected, then turns itself off automatically.

Boost Function

sets the hood to work at maximum extraction speed for even greater efficiency when large amounts of vapour or cooking aromas are present.

Download :

Fiche_produit_EU_DHB7939X_en.pdf (24 Ko)


Notice_DHB7939X.pdf (704 Ko)

Etiquette_Energie_Label_DHB7939X.pdf (314 Ko)

Main Specifications

Type of hoods:

Island decorative hood

Output air extraction (m3/h):

544

Width (cm):

90

Control panel

Type of control:

Electronic

Boost position:

None

Lighting

Number of lights:

4

Light position:

Rear;Front

Type of bulb:

Led

Total brightness in Lux:

594

Lighting power (W):

2.0

Performances

Number of speed positions:

4

Acoustic power level (recycling) (dBA):

60

Max recycling air extraction (m3/h):

471

Boost position output recirculating (m3/h):

633

Boost position air extraction (m3/h):

802

Minimum evacuation sound level (dBA):

55

Max evacuation sound level (dBA):

66

Filtering

Number of filters:

3

No-return airflow clap:

Yes

Optional accessories:

Characoal filter

Dimensions

Height of product without chimmey (mm):

60

Dimensions of product HxWxD (mm):

60X900X605

Height of chimmey min/max (mm):

830 / 1170

Dimensions of the packed product HxWxD (mm):

880X1100X700

Gross weight (kg):

34.5

Net weight (kg):

26

Connections

Voltage (V):

220-240

Frequency (Hz):

50-60

Current (A):

10

Connection rating (W):

273.0
