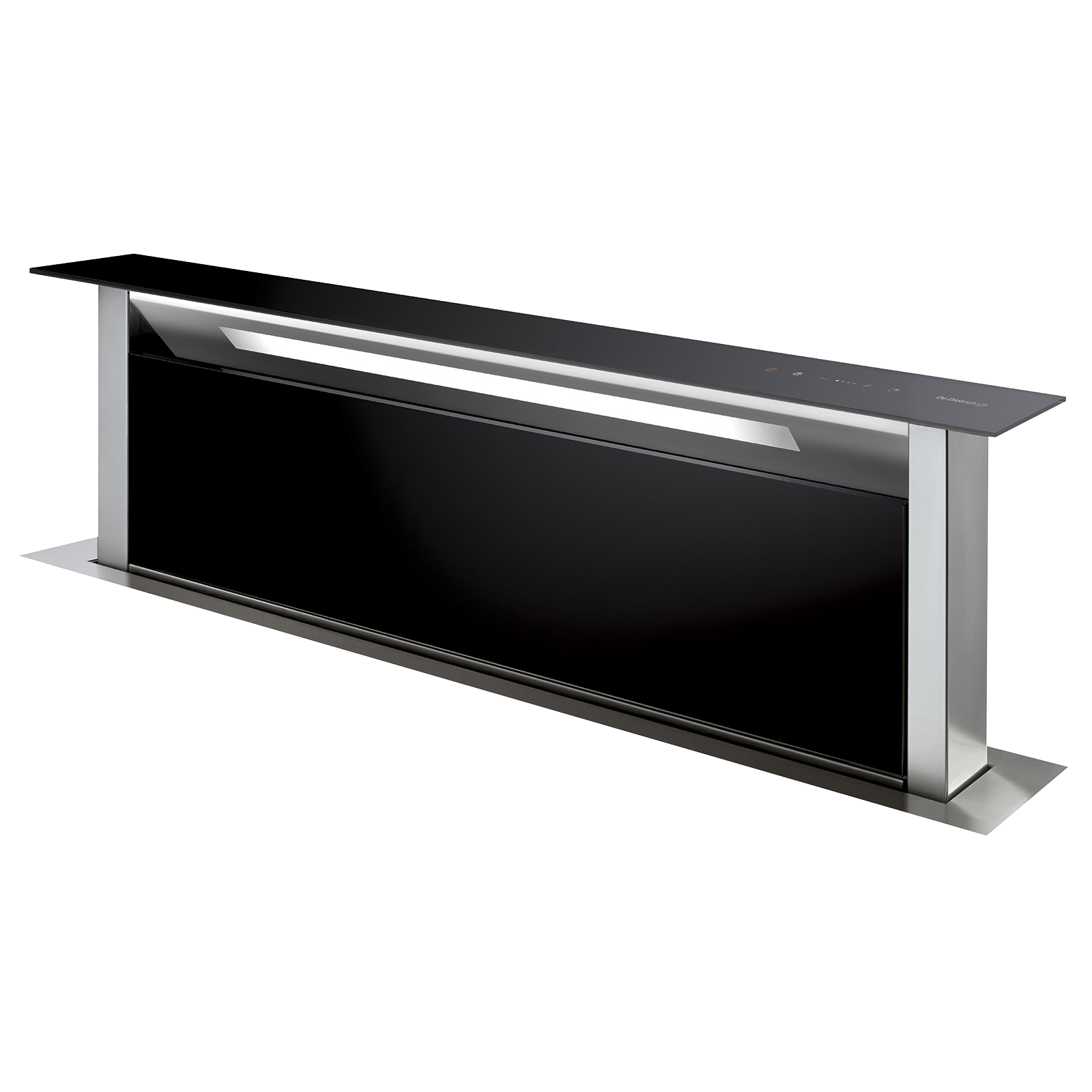

Downdraft hood DHD7261B

Fascination
Collection

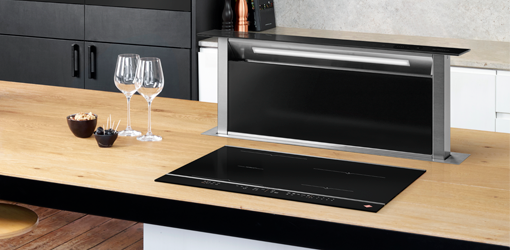

Perfectly pitched extraction and cooking. This 120 cm downdraft extractor hood can be used with all hobs and domino outfits in the Collection. Its motor is hidden away under the counter during installation to leave nothing but an understated black glass surface on show. The unit is wonderfully unobtrusive, in terms of both its discreet appearance and low noise levels during operation.

colors

zoom

compare

Add this product to my favourites

For Extraction and Cooking that are Perfectly in Tune

This hood evokes emotions that are rarely seen in relation to extraction units. Following initial amazement, its innovative design is met with the greatest admiration. Its uniqueness lies in the way it sits directly next to the hob, showing nothing but a plain fl at surface in a subtle, deep black glass.

LED Lighting - The Greatest Respect for the Environment

This lighting method stands out as consuming almost 85% less electricity and lasting 20 times as long as an incandescent bulb. The system both efficiently illuminates all the pans on your hob and provides you with soft mood lighting that is ideal for over dinner.

Delayed Stop Function

This system has been designed to totally eradicate any residual postcooking vapours. The hood continues to function for ten minutes after the last speed is selected, then turns itself off automatically.

Boost Function

When selected, this feature immediately sets the hood to work at maximum extraction speed for even greater efficiency when large amounts of vapour or cooking aromas are present.

Download :

Fiche_produit_EU_DHD7261B_en.pdf (24 Ko)


Notice_DHD7261B.pdf (1 Mo)

Etiquette_Energie_Label_DHD7261B.pdf (41 Ko)

Main Specifications

Type of hoods:

Downdraft

Output air extraction (m3/h):

612

Width (cm):

120

Control panel

Type of control:

Electronic

Boost position:

Yes

Lighting

Number of lights:

Light position:

Centre

Type of bulb:

Lighting power (W):

Performances

Number of speed positions:

Acoustic power level (recycling) (dBA):

Max recycling air extraction (m3/h):

603

Boost position output recirculating (m3/h):

633

Boost position air extraction (m3/h):

791

Minimum evacuation sound level (dBA):

Max evacuation sound level (dBA):

Filtering

Number of filters:

No-return airflow clap:

Yes

Accessories:

Charcoal filter

Dimensions

Height of product without chimmey (mm):

742

Dimensions of product HxWxD (mm):

742X1180X340

Dimensions of the niche HxWxD (mm):

730X1085 X96

Dimensions of the packed product HxWxD (mm):

415X1310X875

Gross weight (kg):

Net weight (kg):

Connections

Voltage (V):

220-240

Frequency (Hz):

50/60

Current (A):

Connection rating (W):

284
