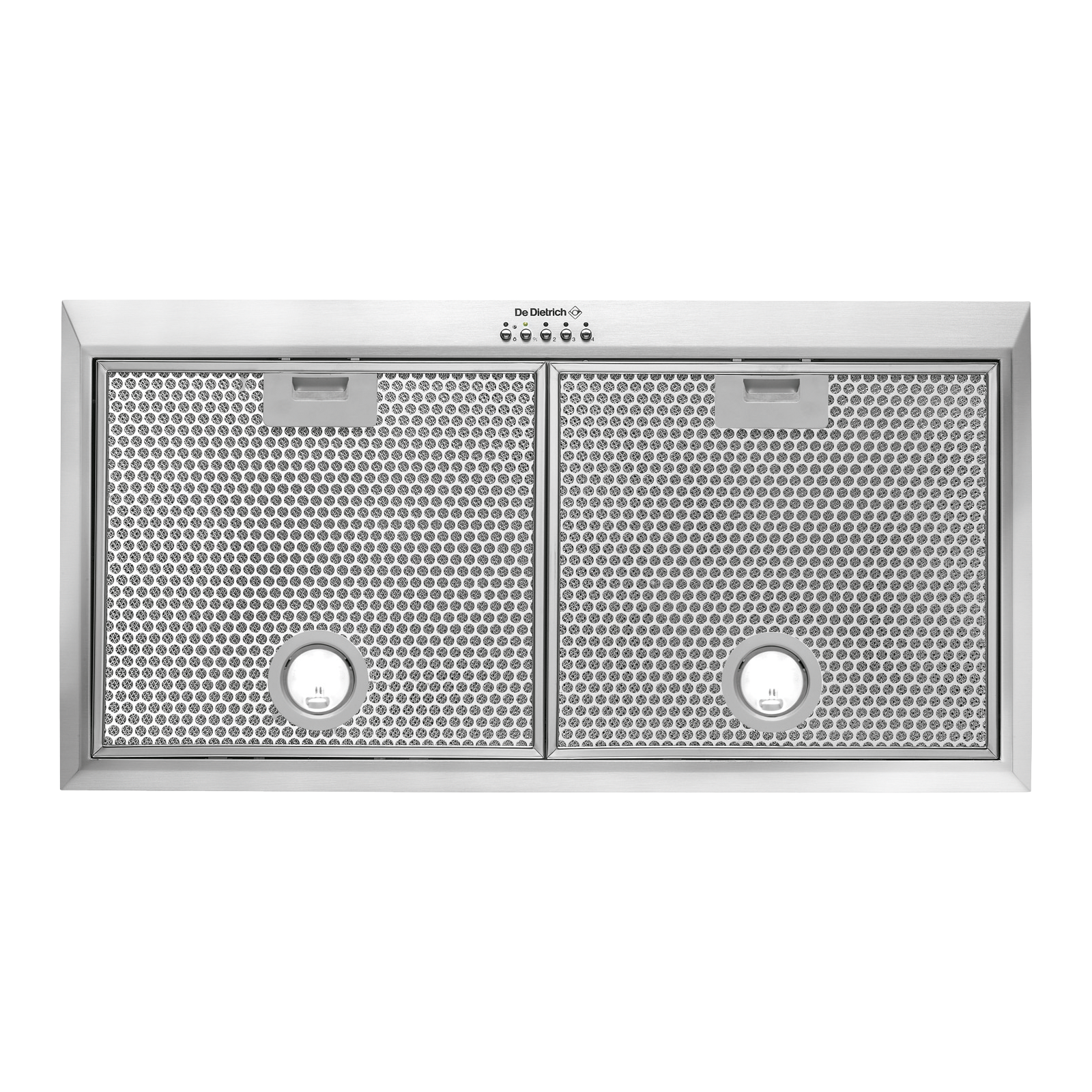

Canopy hood DHG577XP1

Fascination
Collection

This built-in canopy hood silently combines great efficiency and discretion in equal measure. In fact, it can be effortlessly concealed from view in either a wall cabinet or pre-existing hood.

colors

zoom

compare

Add this product to my favourites

Delayed Stop Function

This system has been designed to totally eradicate any residual postcooking vapours. The hood continues to function for ten minutes after the last speed is selected, then turns itself off automatically.

Boost Function

When selected, this feature immediately sets the hood to work at maximum extraction speed for even greater efficiency when large amounts of vapour or cooking aromas are present.

Download :

Fiche_produit_EU_DHG577XP1_en.pdf (24 Ko)


Notice_DHG577XP1.pdf (1 Mo)

Etiquette_Energie_Label_DHG577XP1.pdf (55 Ko)

Main Specifications

Type of hoods:

Filtering unit

Output air extraction (m3/h):

580

Width (cm):

Control panel

Boost position:

None

Lighting

Number of lights:

Type of bulb:

Halogen

Lighting power (W):

Performances

Number of speed positions:

Acoustic power level (recycling) (dBA):

Max recycling air extraction (m3/h):

425

Boost position output recirculating (m3/h):

455

Boost position air extraction (m3/h):

670

Minimum evacuation sound level (dBA):

Max evacuation sound level (dBA):

Filtering

Number of filters:

No-return airflow clap:

Yes

Accessories:

Characoal filter

Dimensions

Dimensions of product HxWxD (mm):

730 X 370 X 342

Height of chimmey min/max (mm):

625 / 940

Dimensions of the packed product HxWxD (mm):

845X440X460

Gross weight (kg):

11,5

Net weight (kg):

Connections

Voltage (V):

220

Frequency (Hz):

Current (A):

Connection rating (W):

290 W
